All IntegraRack products are simple to assemble and are suitable for DIY projects
IR MultiBallast™ Modular Solar Panel Racking System
* Five Configurations Offering Sun Angles From 5-30° (5°, 8°, 13°, 20°, 30°)
* Only Four Main Components (Read More)
* Mounts Solar Modules of Nay Size, From Small To Very Large
* Suitable For Patios & Almost Any Roof Surface
* Can Be Ballasted With Standard Cinder Blocks, Cap Blocks, Concrete Blocks, Or Bricks
* Can Be Mounted With Polyurethane Adhesive If Ballasting Is Not An Option
* Available Wind Spoiler Integrates With The Riser For High Wind Resistance
* Low Cost Per Watt
* No Roof Penetration
The IR MultiBallast solar panel mounting system is the most simple and versatile option on the market for almost any installation. This modular system is capable of holding any size solar panel on almost any roof with a pitch of 6/12 or less, or it can additionally be mounted on a patio or the ground. With only four main components, the MultiBallast comes in multiple configurations with sun angles from 5-30° in North/South facing orientation or East/West ‘W’ orientation with the 5° system. It can even be installed in a 0° flat orientation. All of these configurations can be mounted with our recommended industrial strength adhesive or ballasted using standard cinder blocks. We also offer a wind spoiler to deflect wind from reaching the back of the panels on higher angle orientations.
This product conforms to UL 2703 Mechanical and Bonding requirements

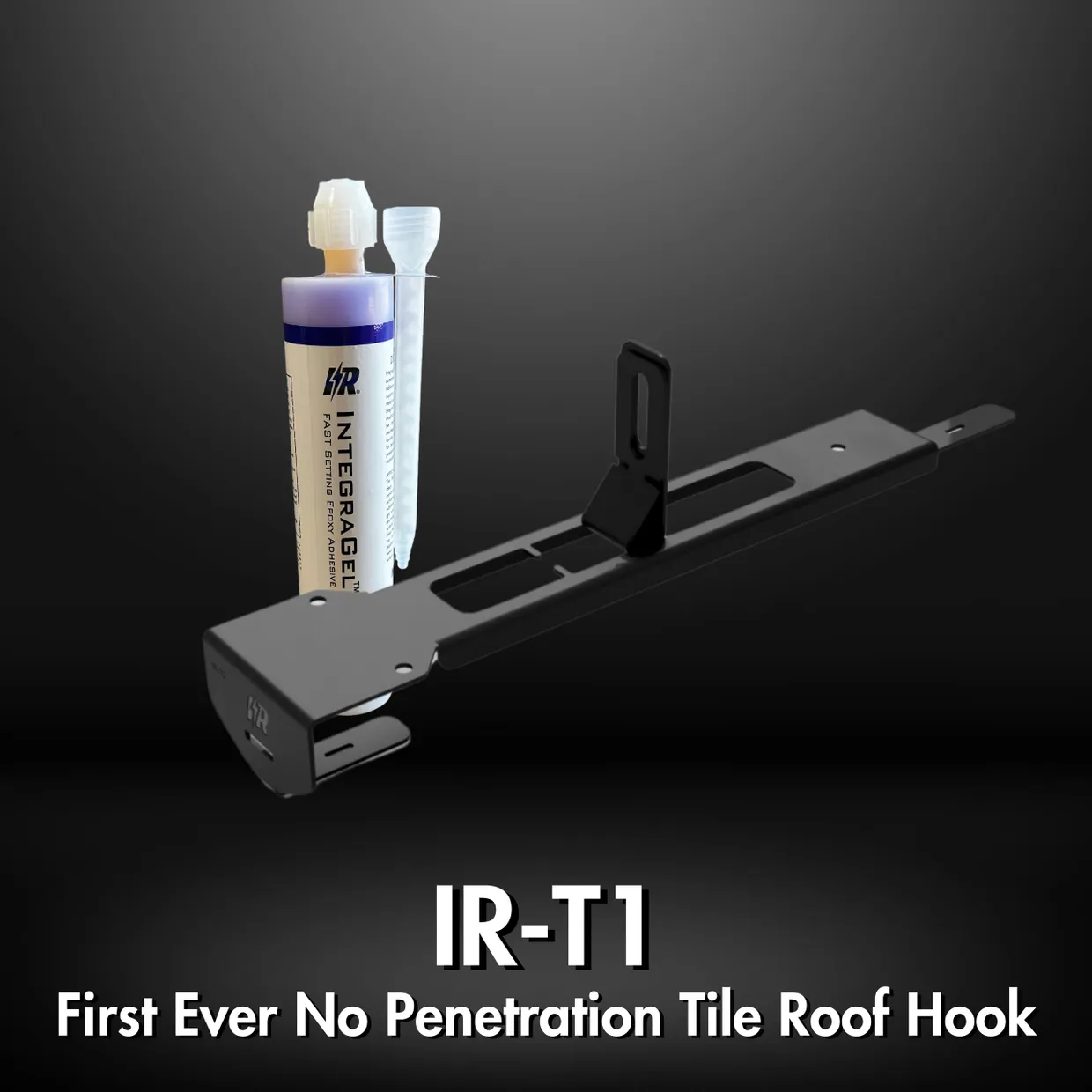

IR-T1 Tile Roof Solar Panel Mounting Brackets
* Aeronautical Wind Tunnel Tested at 165 MPH with 3:1 Safety Factor
* No Roof Penetration
* No Tile Removal
* 4x Faster Install Times
* For Use With All Rail Systems
* Corrosion Resistant
The IR-T1 is the first of its kind and the only tile roof hook that requires no removal of tiles and no roof penetration at all. The IR-T1 TileBallast™ System is 4x faster to install than traditional tile roof hooks and much stronger, since our proprietary installation system actually increases the overall strength of the entire roof structure. When installed using our test proven IntegraGel Fast Setting Industrial Strength Two Part Epoxy, each bracket uses the weight of the heavy concrete tiles which are nested and overlapping each other. The IR-T1 has been tested at the George E. Boeing Aeronautics Department Wind Tunnel and is proven to withstand over 165 MPH wind speeds with a 3:1 safety factor, making it the most extensively tested solar roof mounting bracket ever. One tube of IntegraGel Epoxy is good for up to ten mounts.
Each IR-T1 comes with a strong, integrated upright mount that can be attached to any rail system. The simplicity of this system allows for extremely fast and easy installations. With no need to remove and replace tiles on the roof, installers are much less fatigued on large jobs. Many installers see increased sales with home-owners that are worried about potential leaks and love the benefits of a non-invasive system.
*Works with most all styles of concrete roof tiles with at least 1.25 inch thickness and 11.75-15.5 inch spacing. Only recommended for use with concrete roof tiles, not compatible with Spanish clay or ceramic tiles.
This product conforms to UL 2703 Mechanical and Bonding requirements
IR-15 BallastRack™ Solar Module Racking System
* Building Permit NOT Required For Most Installations (See Documentation)
* Proudly Made in the USA with USA Sourced Aircraft Grade Aluminum
* Fixed 15° Sun Angle w/ 0° Hurricane Setting
* Capable Of Racking Any Size Solar Panel
* 2 Minute Assembly Per Frame
* Built To Withstand Hurricane Force Winds
* Lowest Cost Per Watt
* No Concrete Footings, Post Pounding, or Earth Augers Required
* Multiple Mounting Options
* High-Strength Engineering
The IR-15 BallastRack was specifically designed to rack solar modules of any size, even 800 Watt jumbo size solar panels, with ease. The IR-15 was built to withstand hurricane force winds (Click HERE for Engineering & Datasheets). With 4 innovative mounting options available to choose from, even soft sand or super rocky terrain is no problem at all for lightning-fast installation. Each IR-15 Frame can be assembled in less than 2 minutes, and with its ability to rack modules of any size, this system is by far the most cost-effective ground mount racking system on the market today. The IR-15 doesn’t require any concrete footings, post pounded poles, or hand shoveling dirt into small bins. The IR-15 solar panel ground mount racking system is made from 6061 T6 aircraft grade aluminum, and it’s much stronger, lighter weight and more compact to ship than most other racking systems. The fixed 15° design offers optimal year-round energy production across most of the United States, and with its easy to slide adjustable solar module height feature, it offers great ground clearance and a great angle for fast snow shedding.
This product conforms to UL 2703 Mechanical and Bonding requirements
IR-30 BallastRack™ Solar Module Racking System
* Building Permit NOT Required For Most Installations (See Documentation)
* Proudly Made in the USA with USA Sourced Aircraft Grade Aluminum
* Fixed 30° Sun Angle
* Capable Of Racking Any Size Solar Panel
* 2 Minute Assembly Per Frame
* Built To Withstand Hurricane Force Winds
* Lowest Cost Per Watt
* No Concrete Footings, Post Pounding, or Earth Augers Required
* Multiple Mounting Options
* High-Strength Engineering
The IR-30 BallastRack was specifically designed to rack solar modules of any size, even 800 Watt jumbo size solar panels, with ease. The IR-30 was built to withstand strong winds (Click HERE for Engineering & Datasheets). With 4 innovative mounting options available to choose from, even soft sand or super rocky terrain is no problem at all for lightning-fast installation. Each IR-30 Frame can be assembled in less than 2 minutes, and with its ability to rack modules of any size, this system is by far the most cost-effective ground mount racking system on the market today. The IR-30 doesn’t require any concrete footings, post pounded poles, or hand shoveling dirt into small bins. The IR-30 solar panel ground mount racking system is made from 6061 T6 aircraft grade aluminum, and it’s much stronger, lighter weight and more compact to ship than most other racking systems. The fixed 30° design offers optimal year-round energy production across most of the United States and with its easy to slide adjustable solar module height feature, it offers great ground clearance and a great angle for fast snow shedding.
This product conforms to UL 2703 Mechanical and Bonding requirements
IR-45 BallastRack™ Solar Module Racking System
* Building Permit NOT Required For Most Installations (See Documentation)
* Proudly Made in the USA with USA Sourced Aircraft Grade Aluminum
* Fixed 45° Sun Angle
* Capable Of Racking Any Size Solar Panel
* 2 Minute Assembly Per Frame
* Built To Withstand Hurricane Force Winds
* Lowest Cost Per Watt
* No Concrete Footings, Post Pounding, or Earth Augers Required
* Multiple Mounting Options
* High-Strength Engineering
The IR-45 BallastRack was specifically designed to rack solar modules of any size, even 800 Watt jumbo size solar panels, with ease. The IR-45 was built to withstand strong winds (Click HERE for Engineering & Datasheets). With 4 innovative mounting options available to choose from, even soft sand or super rocky terrain is no problem at all for lightning-fast installation. Each IR-15 Frame can be assembled in less than 2 minutes, and with its ability to rack modules of any size, this system is by far the most cost-effective ground mount racking system on the market today. The IR-45 doesn’t require any concrete footings, post pounded poles, or hand shoveling dirt into small bins. The IR-45 solar panel ground mount racking system is made from 6061 T6 aircraft grade aluminum, and it’s much stronger, lighter weight and more compact to ship than most other racking systems. The fixed 45° design offers optimal year-round energy production across most of the United States, and with its easy to slide adjustable solar module height feature, it offers great ground clearance and a great angle for fast snow shedding.
This product conforms to UL 2703 Mechanical and Bonding requirements
IR-40FSAB BallastRack™ Fixed SELECTABLE Angle Solar Module Racking System
* Building Permit NOT Required For Most Installations (See Documentation)
* Constructed From Super Corrosion Resistant Black Zinc Plated High- Strength Steel
* 15-40° Fixed Selectable Solar Angle
* Capable Of Racking Any Size Module
* 8″ of Extra Ground Clearance
* 2 Minute Assembly Per Frame
* Lowest Cost Per Watt With Adjustable Angle
* No Concrete Footings, Post Pounding, or Earth Augers Required
* Multiple Mounting Options
The IR-40FSAB is constructed from black zinc plated high-strength steel and offers all of the same great features of our other BallastRack systems with the ability to be set closer to the exact angle needed for maximum performance in your region. This system is designed to rack solar modules of any size, even 800 Watt jumbo size solar panels are no match for the IR-40FSAB. With multiple innovative mounting options available to choose from, even soft sand or super rocky terrain is no problem at all for lightning-fast install times. Each IR-40FSAB frame can be assembled in less than 2 minutes, and with its unbelievable ability to rack modules of any size, this system is by far the most cost-effective adjustable ground mount racking system on the market today. Unlike some ground mounting systems, the IR-40FSAB doesn’t require any concrete footings, post pounded poles, or hand shoveling dirt into small bins. The 15-40° selectable angle can be set to offer optimal year-round energy production across most regions around the world, and with its easy to slide adjustable solar module height feature, it offers great ground clearance and a great angle for fast snow shedding. With extensive lab testing and engineering, and backed by a 25 year limited product warranty, this system is perfect for any project.
This product conforms to UL 2703 Mechanical and Bonding requirements
IR-40FSAA BallastRack™ Fixed SELECTABLE Angle Solar Module Racking System
* Building Permit NOT Required For Most Installations (See Documentation)
* Proudly Made in the USA with USA Sourced Aircraft Grade Aluminum
* 15-40° Fixed Selectable Solar Angle
* Capable Of Racking Any Size Module
* 8″ of Extra Ground Clearance
* 2 Minute Assembly Per Frame
* Lowest Cost Per Watt With Adjustable Angle
* No Concrete Footings, Post Pounding, or Earth Augers Required
* Multiple Mounting Options
The IR-40FSAA is proudly made in the USA with USA sourced aircraft grade aluminum and offers all of the same great features of our other BallastRack systems with the ability to be set closer to the exact angle needed for maximum performance in your region. This system is designed to rack solar modules of any size, even 800 Watt jumbo size solar panels are no match for the IR-40FSAA. With multiple innovative mounting options available to choose from, even soft sand or super rocky terrain is no problem at all for lightning-fast install times. Each IR-40FSAA frame can be assembled in less than 2 minutes, and with its unbelievable ability to rack modules of any size, this system is by far the most cost-effective adjustable ground mount racking system on the market today. Unlike some ground mounting systems, the IR-40FSAA doesn’t require any concrete footings, post pounded poles, or hand shoveling dirt into small bins. The 15-40° adjustable angle can be set to offer optimal year-round energy production across most regions around the world, and with its easy to slide adjustable solar module height feature, it offers great ground clearance and a great angle for fast snow shedding.
This product conforms to UL 2703 Mechanical and Bonding requirements
IR-45ASAA – IR-45ASAB Ballasted Racking
* Building Permit NOT Required For Most Installations (See Documentation)
* Constructed From Super Corrosion Resistant Black Zinc Plated High- Strength Steel
* 15-40° Fixed Selectable Solar Angle
* Capable Of Racking Any Size Module
* 8″ of Extra Ground Clearance
* 2 Minute Assembly Per Frame
* Lowest Cost Per Watt With Adjustable Angle
* No Concrete Footings, Post Pounding, or Earth Augers Required
* Multiple Mounting Options
The IR-45ASA is available in aircraft grade aluminum (IR-45ASAA) or black zinc electroplated high-strength steel (IR-45ASAB) and offers all of the same great features of our other BallastRack Systems with the ability to be set closer to the exact angle needed for maximum performance in your region. This system is designed to rack very large solar modules, even 550W solar panels are no match for the IR-45ASA Racking System. With 4 innovative mounting options available to choose from, even soft sand or super rocky terrain is no problem at all for lightning-fast install times. Each IR-45ASA Frame can be assembled in less than 2 minutes, and with its unbelievable ability to rack very large solar panels, this system is by far the most cost-effective ground mount racking system on the market today. Unlike some ground mounting systems, the IR-45ASA doesn’t require any concrete footings, post pounded poles, or hand shoveling dirt into small bins. The IR-45ASA solar module ground mount racking system is made from 6061 T6 aircraft grade aluminum, so it’s much stronger, lighter weight and more compact to ship than any other racking system on the market. The 15-45° adjustable angle can be seasonally adjusted to offer optimal year-round energy production across most regions around the world, and with its easy to slide adjustable solar module height feature, it offers great ground clearance and a great angle for fast snow shedding. With extensive lab testing and engineering, and backed by a 25 year limited product warranty, this system is perfect for any project.
This product conforms to UL 2703 Mechanical and Bonding requirements

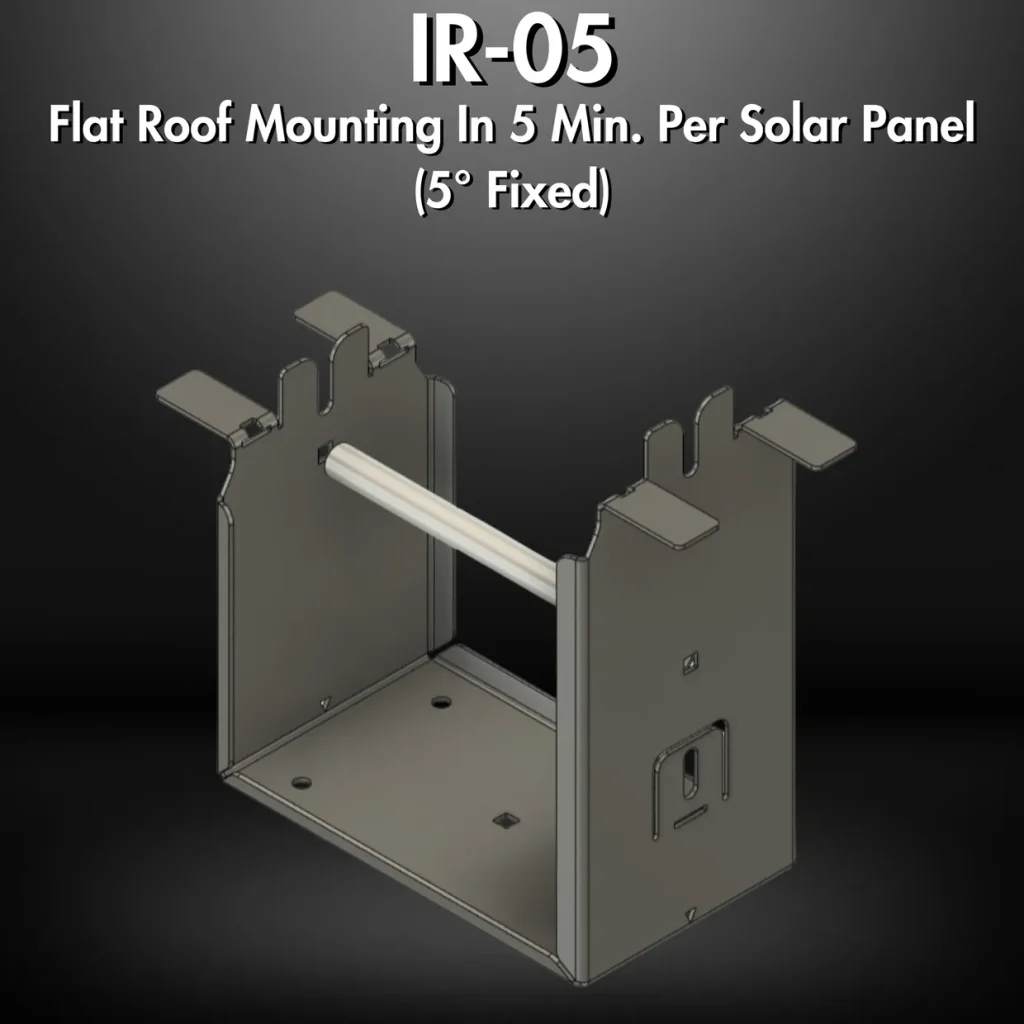

IR-05 BallastBase™ Flat Roof Mount
* 30 Second Assembly Per Bracket, 5 Minute Install Per Solar Panel
* Capable of Racking Solar Modules Up 700 Watts
* Multiple Roof Mounting Methods
* Integrated Module Bonding & Micro-Inverter Mounting
* Corrosion Resistant
* Low Cost Per Watt
* Does Not Require Roof Penetration
The IR-05 BallastBase Flat Roof Mount is the fastest, strongest, and most cost effective 5 degree ballast system on the market. Each mount can be assembled in less than 30 seconds, and modules can be mounted in under a minute, for lightning fast installation times! This system offers multiple mounting options to work for any job while being capable of racking solar modules of up to 700 Watts, even with no roof penetration. Our IR-05 is designed to clamp around a standard cinder block and the integrated handle allows one person to carry and place multiple IR-05s with weight without the fatigue caused by other ballasted basket type systems. If your project requires less weight on the roof, this mount can also be installed with deck screws or our own IntegraGel Industrial Strength Adhesive.
*If installing on a roof without a surrounding parapet, the sides and back of the system must be covered to block wind from getting underneath the solar panels.
This product conforms to UL 2703 Mechanical and Bonding requirements
LARGE SCALE SOLAR RACKING SYSTEM (Also available as DIY)
* Rapid Installation On Any Ground Surface
* Affordable Installation As low s $0.10 per Watt
* Super Corrosion Resistance
* Capable Of Racking Any Size Module
* 8″ of Extra Ground Clearance
* 6X Faster Installation Than Other Systems
* No Concrete Footings, Post Pounding, or Earth Augers Required
* Multiple Mounting Options
IntegraRack provides advanced ground-mounted systems designed for large-scale commercial projects, with costs as low as $0.10 per watt and installation times up to six times faster than traditional ground mount systems. Our BallastRack product line features a variety of models with both fixed and adjustable angles, aircraft-grade aluminum and black zinc plated high-strength steel. Each BallastRack model is equipped with versatile mounting options, allowing for straightforward installation in a wide range of locations without the need for concrete footings, post pounding, or earth augers.
IntegraRack® BallastRack™ Mounting Kits
IntegraRack IR EarthBallast™ Mounting Kit
Compatible with all BallastRack models.
Geotextile material uses fast-setting epoxy to adhere to the BallastRack frames and earth fill over for a very strong and fast ballasted system.
Kit incudes a 50 ft. roll of strong geotextile material, a strong epoxy with mixing nozzle, a ratchetting wrench, and everything needed to prep the frames. Provides easy mounting in locations where ground penetration is not possible, with incredible strength against high wind speeds.
Capable of ballasting up to 13 BallastRack frames (based on 46″ wide panel).
IntegraRack IR AnchorSpike™ Mounting Kit (Multi-Pack) for BallastRack
Compatible with all BallastRack models
AnchorSpikes kit for mounting BallastRack frames into the ground. With this installation method each BallastRack frame clamps to two AnchorSpikes with a two part epoxy to create a strong anchor. Kit includes a ratcheting wrench, IR AnchorSpikes and a two part epoxy kit to mount multiple frames almost anywhere. Available with sets of 10 or 22 AnchorSpikes.
*SDS Hammer Drill and 30 inch concrete drill bit are recommended for installation.
This product conforms to UL 2703 Mechanical and Bonding requirements
IntegraRack Concrete Slab/Footing Anchor Bolt Mounting Kit
Compatible with all BallastRack models
Kit Includes a ratcheting wrench for mounting panels, 22 concrete lag bolts, 44 washers and 2 concrete drill bits for mounting frames up to 11 frames to almost any concrete surface. Perfect for mounting to pre-existing concrete pads/patios (on-site engineering may be required by county) or newly poured concrete slabs/footings.
IntegraRack IR-T1 TileBallast™ No Penetration Solar Module Roof Mount (multi-pack)
Compatible with all BallastRack models
IR-T1 tile roof mounting bracket kit. Aeronautical Wind Tunnel Tested at 165 MPH With a 3:1 Safety Factor. Kit Includes Ten IR-T1 mounts which do not
require tile removal. The IR-T1 mounts maintain roof integrity as there is no need for roof penetration. 4x faster than traditional tile roof hooks. Fits wide range of concrete roof tiles. For use with all rail systems. Rated for almost 200lbs of direct uplift per mount.
This product conforms to UL 2703 Mechanical and Bonding requirements
IntegraRack IntegraGel™ Fast Setting Structural Epoxy Adhesive
High-Strength tested for use With IR-T1 & IR-05 systems.
Non-Sagging and Fast Setting
Includes a self-mixing nozzle for clean and easy application.
