IntegraRack offers lightning fast solar panel ground mounting kit options for easy solar module rack frame installation on even the most challenging rocky terrain. Our solar module ground mount kits are compatible with all BallastRack solar racking frames including the IR-15,30,45,35A, and even our seasonally adjustable sun angle IR-45ASA. We offer mounting solutions to address many of the challenges associated with installing ground mount solar panel racking systems. Each mounting kit includes a premium ratchet wrench to speed up solar panel installation. Furthermore, all IntegraRack BallastRack solar racking system models can also be securely ballast ground mounted with most flat style water tanks, sand bags, or concrete curb stops, providing a reliable solar rack frame ballasted racking option for temporary or permanent systems as well.
IR EarthBallast™ Mounting Kits
10 Solar Modules In 100 Minutes

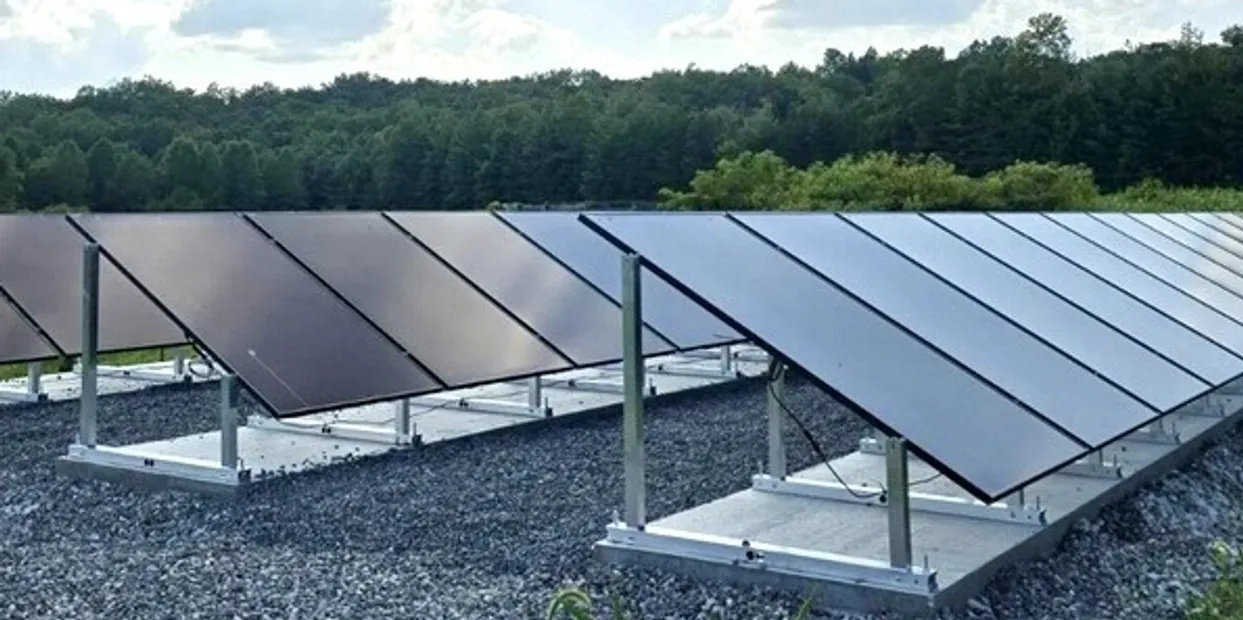

Our EarthBallast mounting option is ideal for most terrain types, particularly when excess soil or crushed rock is available on-site. A skid-steer loader or tractor can be used to evenly distribute earth fill over the included geotextile material that is spanned across frames and epoxied to the top of each rack frame prior to the solar panels being installed, creating a strong substrate for ballast while allowing a clean and natural look when completed.
*1″ Conduit Pipe / EMT (NOT included) is required to link the frames together and can be sourced at any local hardware or electrical supply store in 10′ lengths, which is enough to cover two panels.
*We recommend using this system with two 3/4″ round concrete forming stakes for each frame to provide added strength and easy leveling of the system.
IntegraRack IR EarthBallast™ Mounting Kit Components
3 x 50′ Roll of Strong Geotextile Material
Tube of High-Strength 15 Min. Epoxy w/ Mixing Nozzle
Extra Mixing Nozzle
Scuff Prep Pad
Alcohol Wipes
Premium Ratchet Wrench

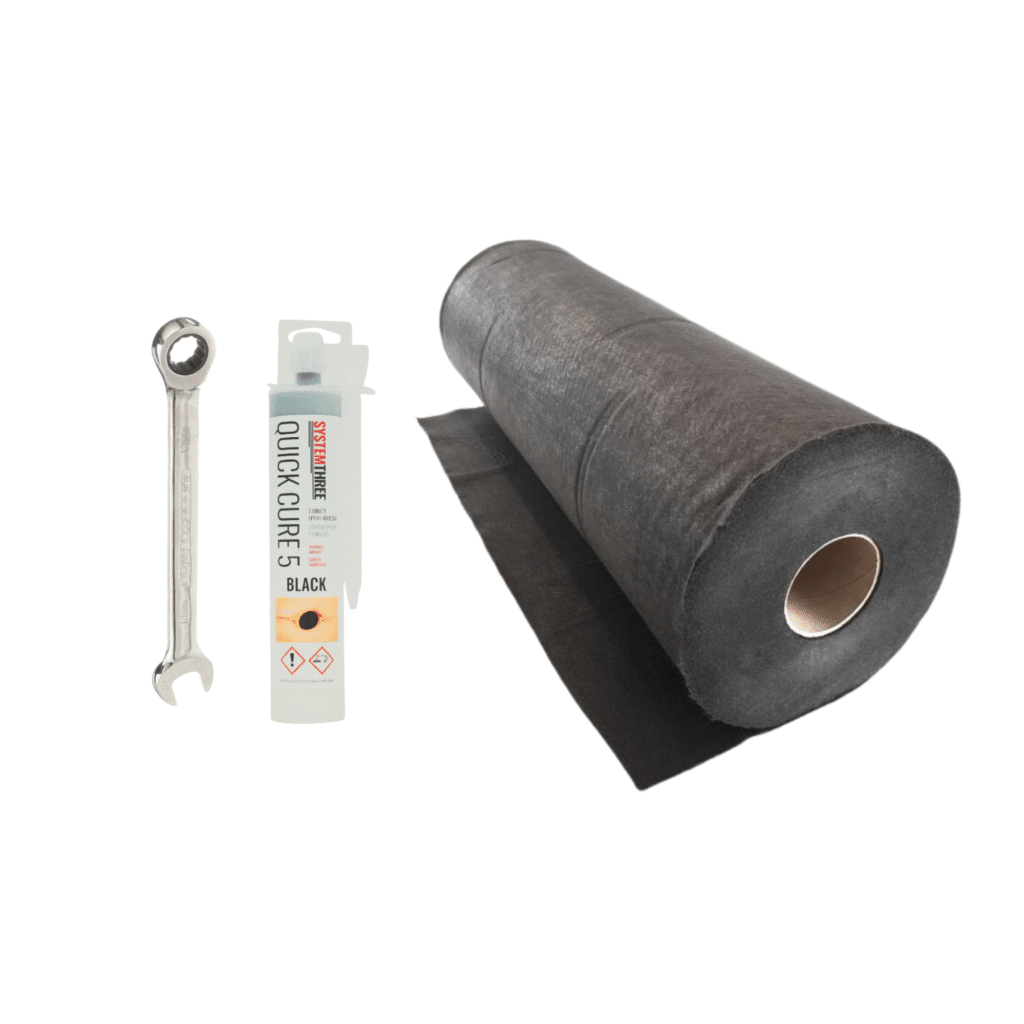

Geotextile material uses fast-setting epoxy to adhere to the BallastRack frames and earth fill over for a very strong and fast ballasted system.
Kit incudes a 50 ft. roll of strong geotextile material, a strong epoxy with mixing nozzle, a ratchetting wrench, and everything needed to prep the frames. Provides easy mounting in locations where ground penetration is not possible. Capable of ballasting up to 13 BallastRack frames (based on 46″ wide panel).

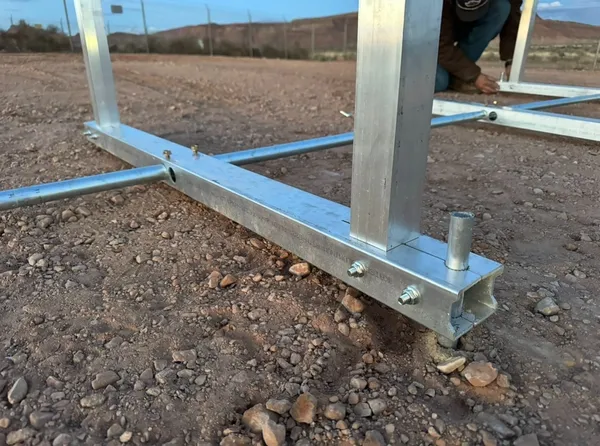

IR AnchorSpike™ Mounting Kits
AnchorSpike Installation Steps
The IR AnchorSpike™ Kits include a set amount of specially designed barbed aluminum spikes and a super strong two part epoxy. The IR AnchorSpikes have a hollow structure with open barbs that allow the epoxy to flow deep into the soil and create a solid anchor rated for up to 1,000 pounds of uplift per spike. Once in place, each BallastRack frame is designed to clamp onto two AnchorSpikes when the carriage bolts at the ends are tightened, which allows for fast and easy leveling of the system.
*One AnchorSpike must be tested at the installation site to ensure it can withstand a minimum of 1,000 lbs of uplift.
*1″ Conduit Pipe / EMT (NOT included) is required to link the frames together and can be sourced at any local hardware or electrical supply store in 10′ lengths, which is enough to cover two panels.
Recommended Tools:
SDS Hammer Drill & 30 Inch SDS-Max Speed-X Carbide Rotary Hammer Bit for Concrete

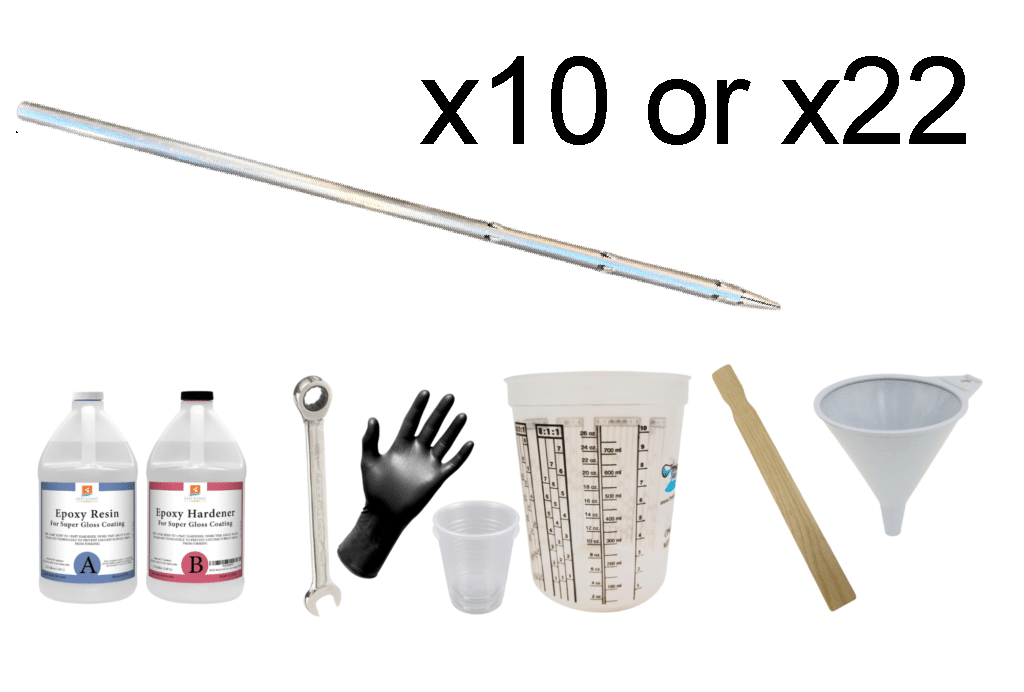

10 Pack and 22 pack AnchorSpike Kits
* 10 or 22 AnchorSpikes Per Pack
* A & B Epoxy
* Mixing Cup
* Stirring Stick
* Gloves
* Pouring Cups
* Funnel
* Premium Ratchet Wrench
AnchorSpikes kit for mounting BallastRack frames into the ground. With this installation method each BallastRack frame clamps to two AnchorSpikes with a two part epoxy to create a strong anchor. Kit includes a ratcheting wrench, IR AnchorSpikes and a two part epoxy kit to mount multiple frames almost anywhere. Available with sets of 10 or 22 AnchorSpikes.
*SDS Hammer Drill and 30 inch concrete drill bit are recommended for installation.
Concrete Slab/Footing Anchor Bolt Mounting Kit
This mounting kit provides enough concrete anchor bolts to mount up to 11 BallastRack frames to pre-poured concrete slabs/footings or an existing concrete surface such as a patio (on-site engineering may be required). This kit also includes two concrete drill bits and 44 washers. This mounting option provides the highest wind ratings for all BallastRack systems.
IntegraRack Concrete Slab/Footing Anchor Bolt Mounting Kit

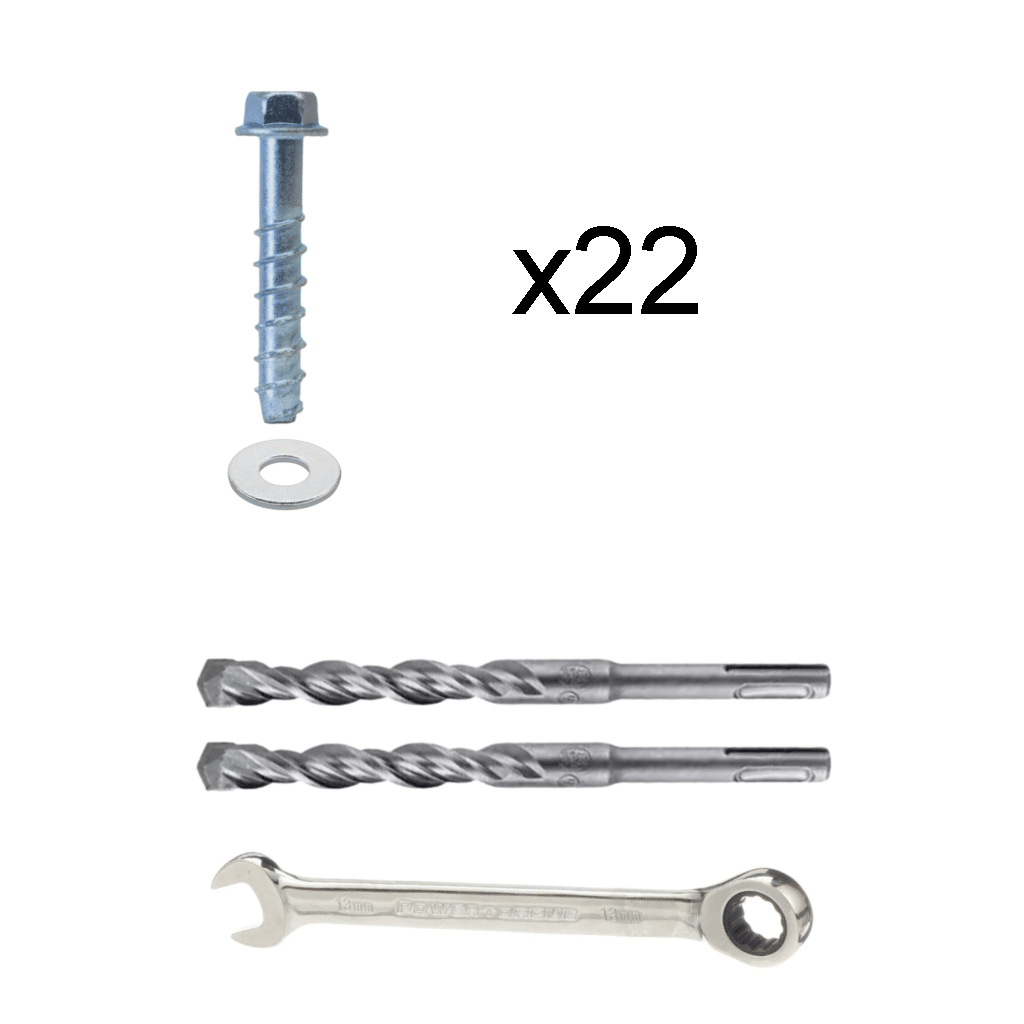

Kit Includes a ratcheting wrench for mounting panels, 22 concrete lag bolts, 44 washers and 2 concrete drill bits for mounting frames up to 11 frames to almost any concrete surface. Perfect for mounting to pre-existing concrete pads/patios (on-site engineering may be required by county) or newly poured concrete slabs/footings.
