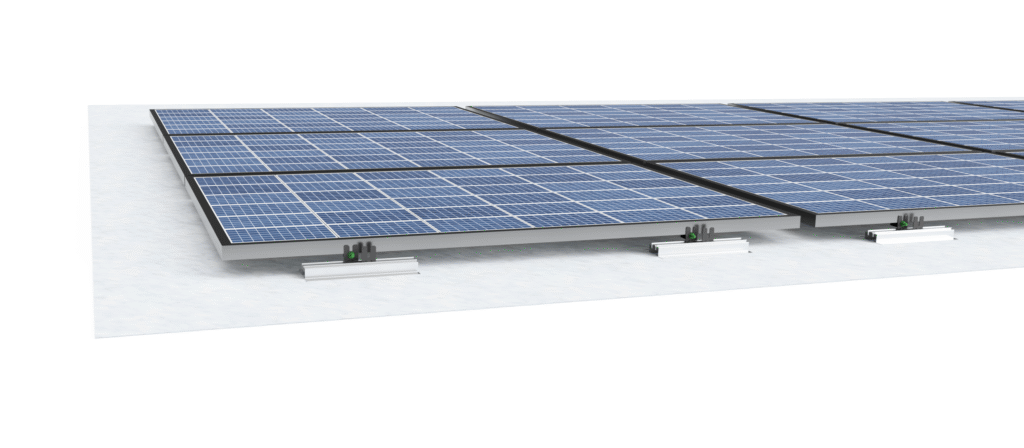

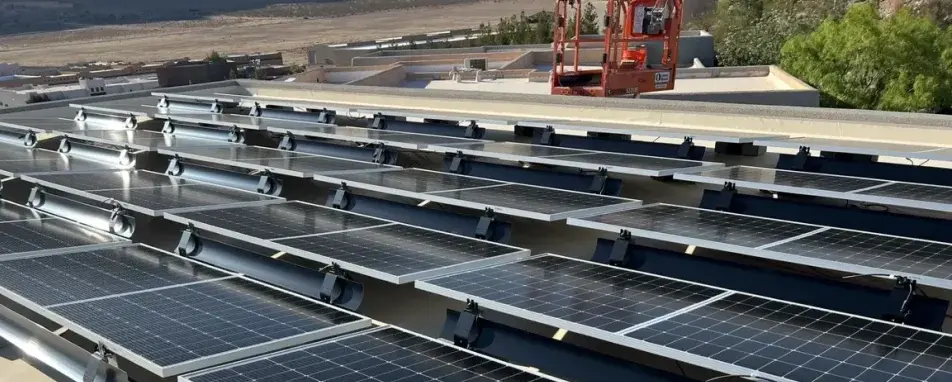

IR MultiBallast™ DB Modular Roof Mounting Solar Panel Mounting Without Roof Penetration
- No roof penetration
- Compatible with almost all roof types and all solar rail systems
- Multiple solar configurations and angles
- Ability to mount solar panels of any size
- Can be mounted with adhesive or ballast
- Optional integration with the elevated mount for incredible wind resistance

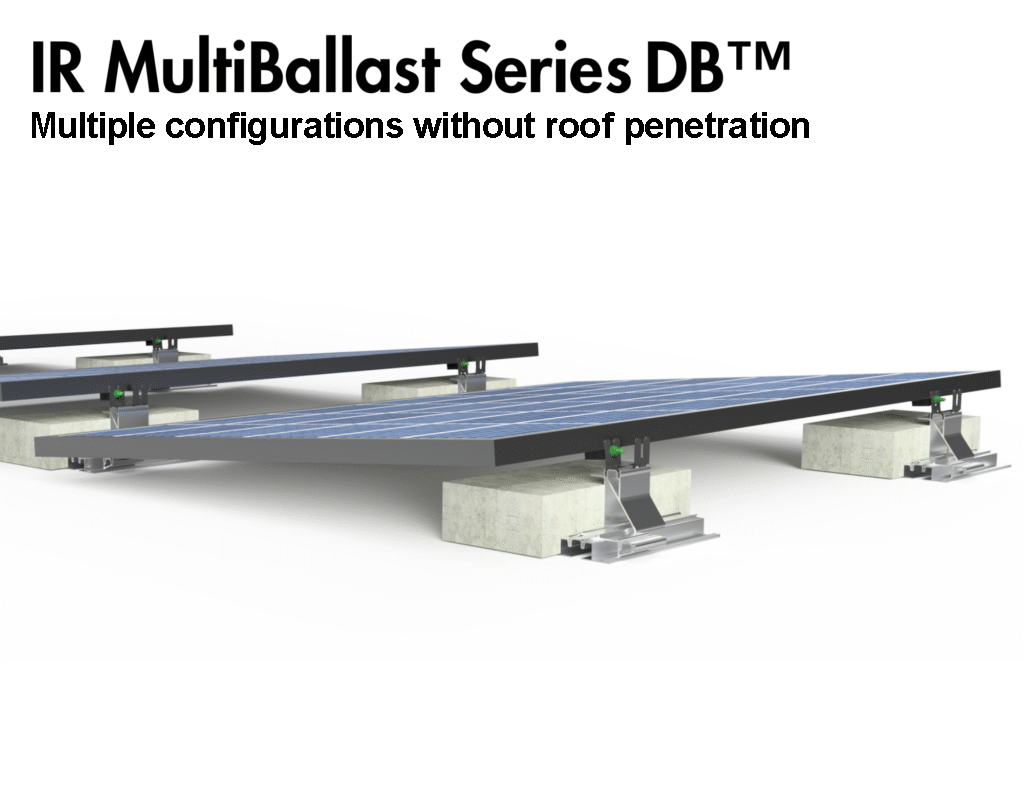

The IR MultiBallast DB Series solar panel mounting system can be used on all roof types without the need for drilling and with extremely fast installation times and no risk to the existing structure. This system is extremely simple and cost-effective, offering multiple configurations, including a 0-degree flat configuration, a 5-degree north/south configuration, and even a 5-degree east/west configuration. This mount can be installed with industrial-strength polyurethane, 9 or 15 kg (20 or 32 lb) CMU blocks (in some configurations), or both, for unprecedented versatility and extremely fast installation times with or without solar rails, similar to other solar rail mounts from other manufacturers.
The IR MultiBallast DB Series adapts to the needs of virtually any project, and its ability to support solar panels of any size makes it unique and contributes to an incredibly low cost per watt. This product meets the mechanical and connection requirements of UL 2703, has a 25-year warranty, and has been precision-engineered and tested in the George E. Boeing Department of Aeronautics wind tunnel. It withstands winds exceeding 266 km/h (165 mph) with a 3:1 safety factor, making it the most tested solar roof mount to date. This product can also be installed with an optional wind deflector (5-degree north/south configuration only), and the IR MultiBallast DB Series™ offset bottom bracket makes microinverter mounting easier.
This product conforms to UL 2703 Mechanical and Bonding requirements

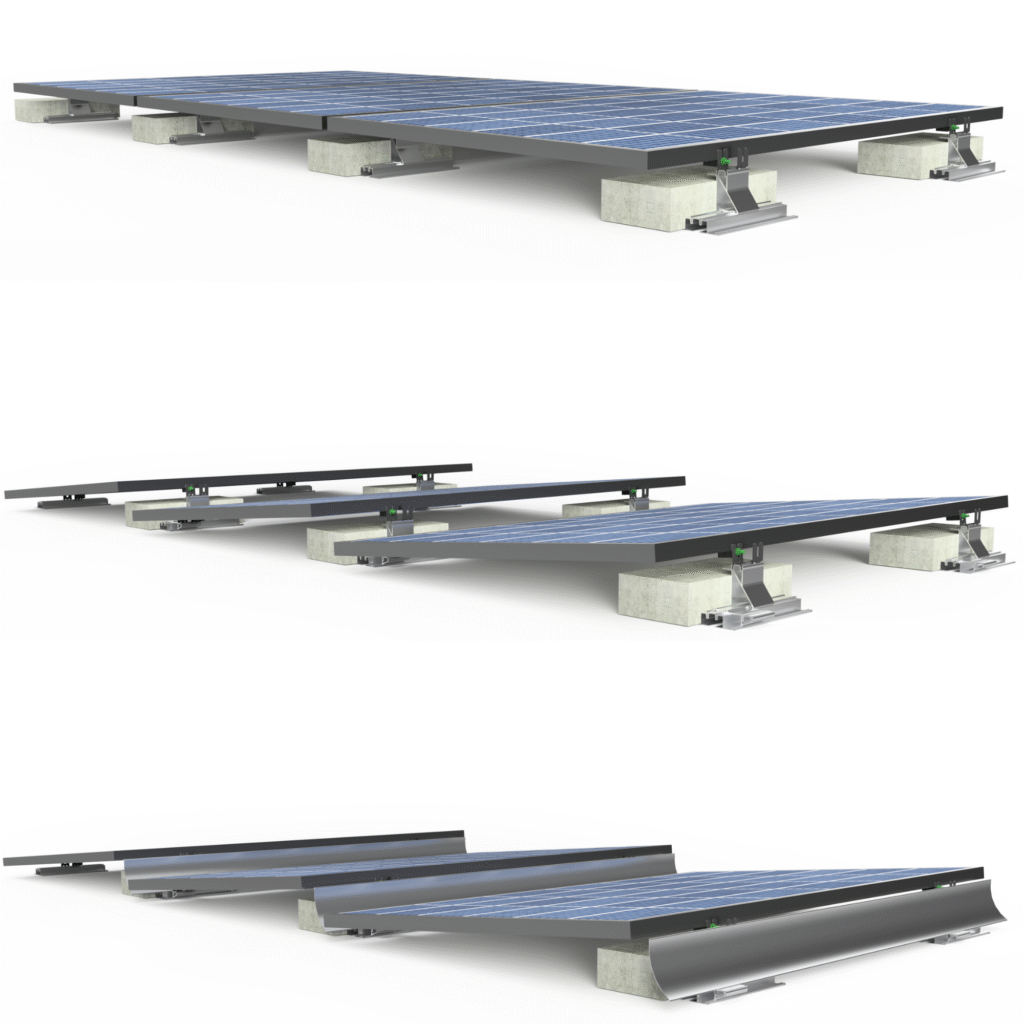

IR Multiballast Configurations

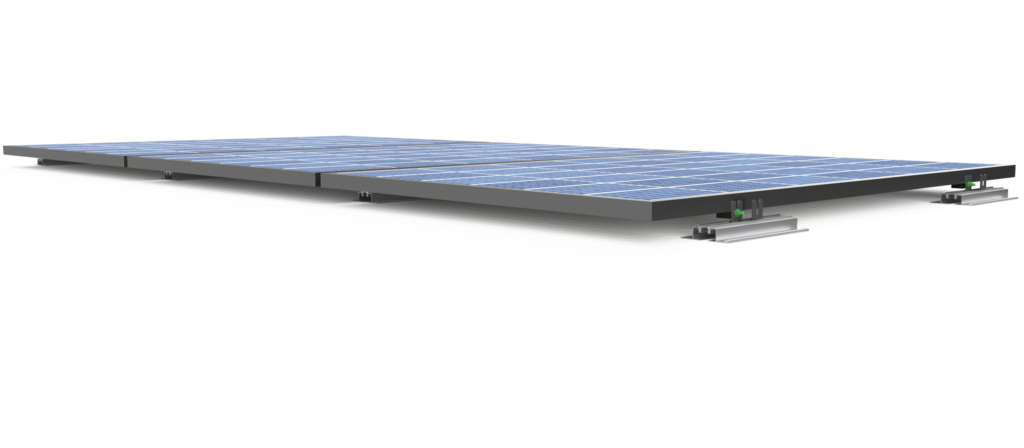

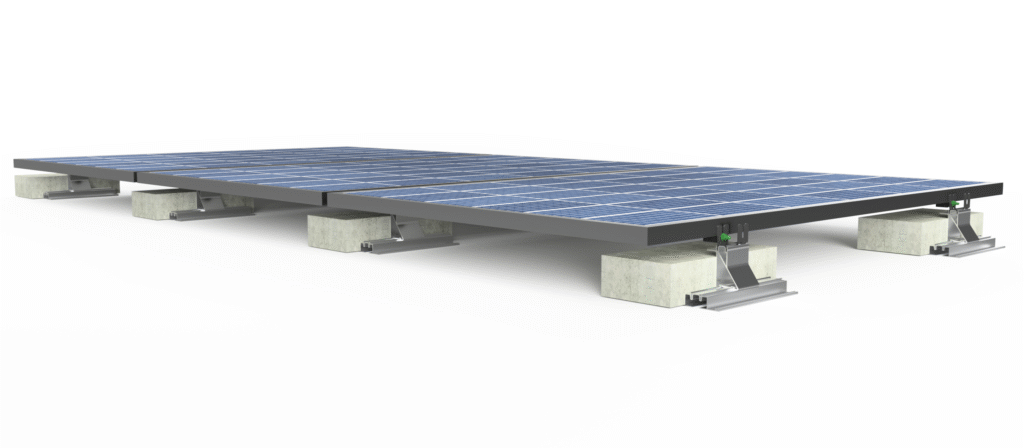

IR-00MBDB – 0 Degree Flat Configuration
IR-05MBDB – 0 Degree Raised Flat Configuration

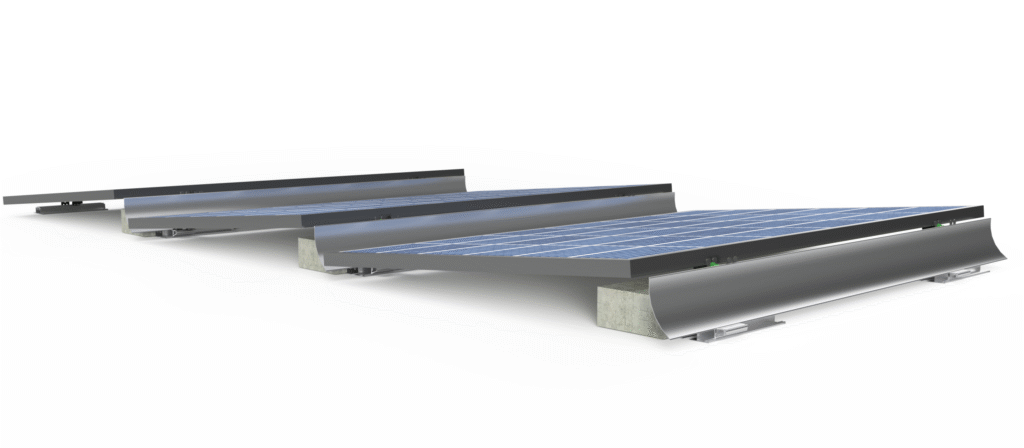

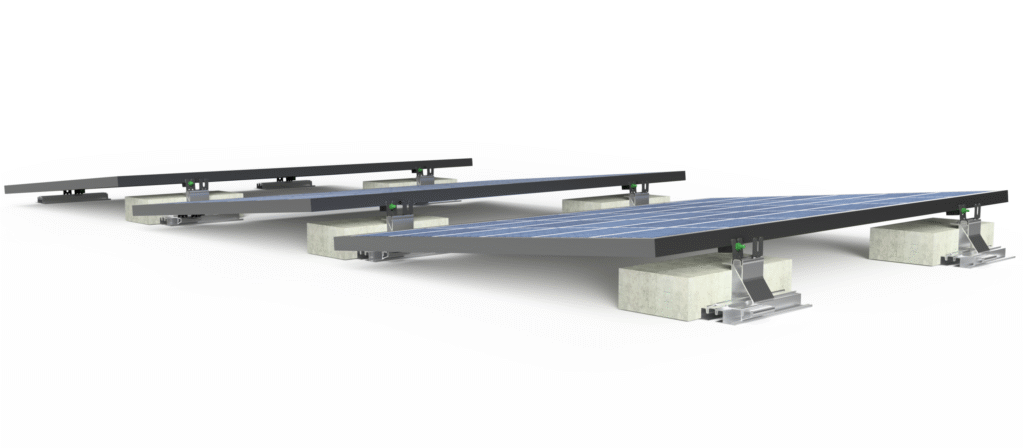

IR-05MBDB – 5 Degree North/South Configuratio
IR-05MBDB – 5 Degree North/South Configuration with Optional Wind Spoiler
Compatible with Almost Any Roof Surface

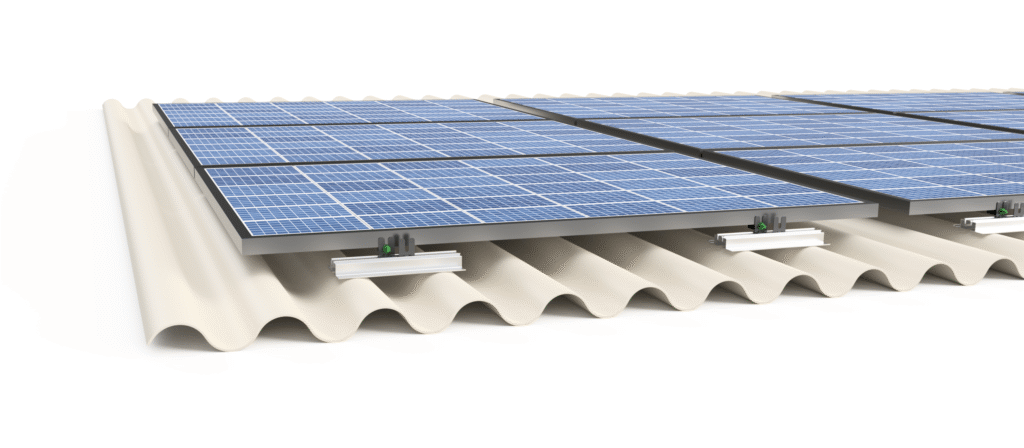

Asbestos/Cement Board Roofs

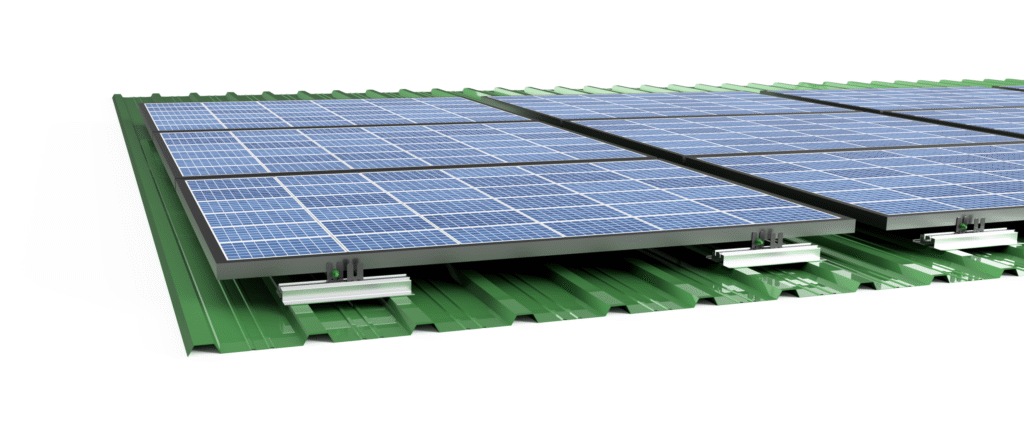

Corrugated Metal Roofs

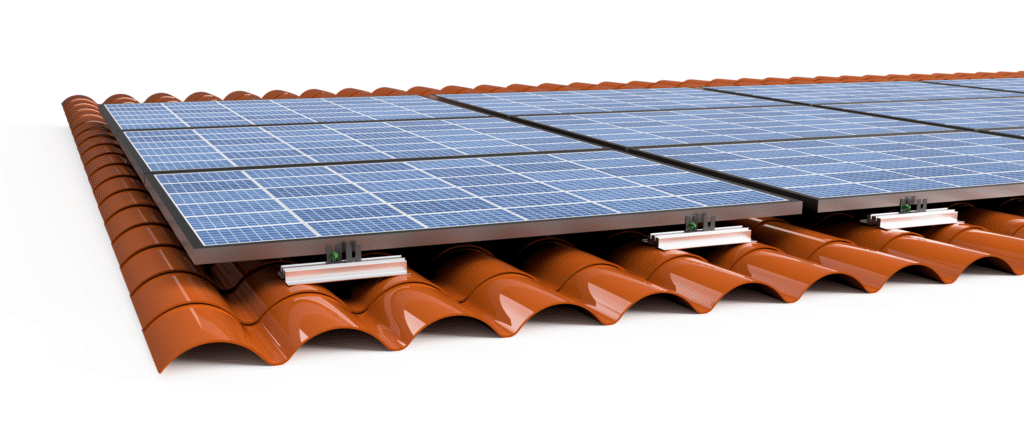

Clay/Concrete/Composite/Tile Roofs
TPO/Concrete/Asphalt Roofs

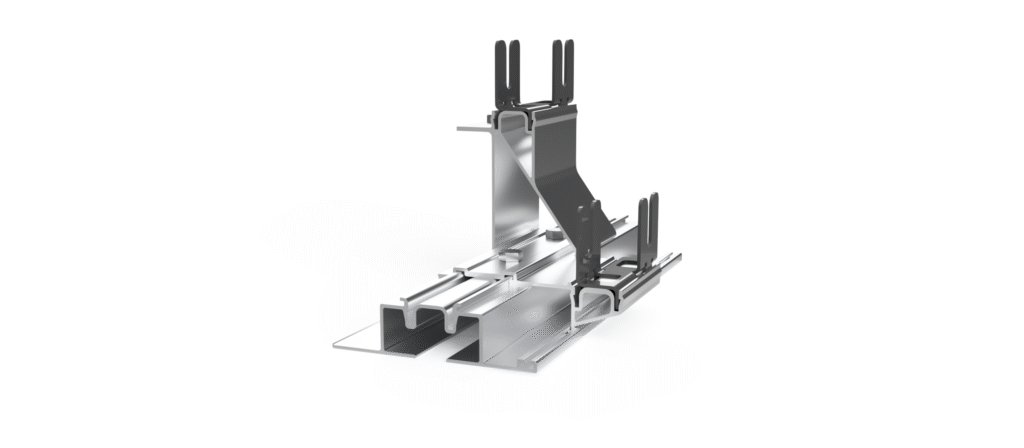

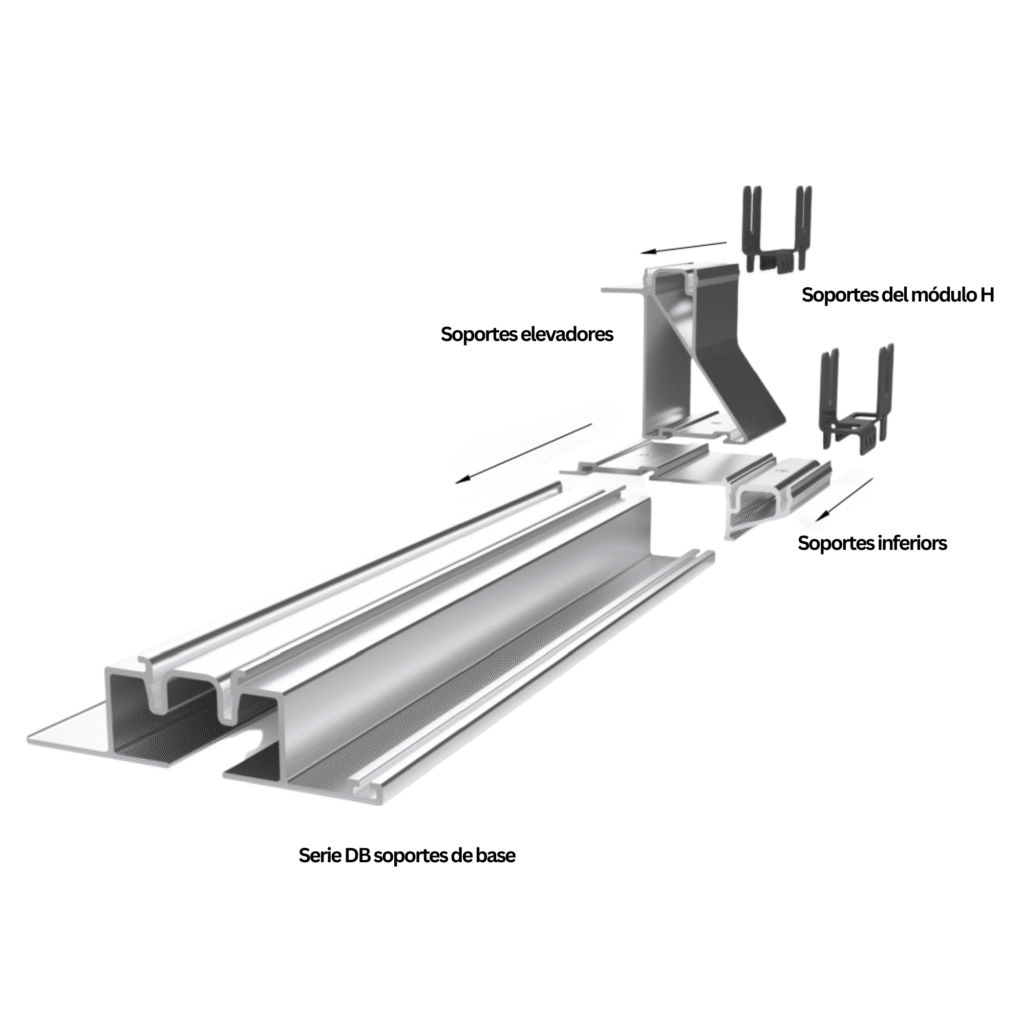

Mounting Components
Kit Options
The IR Multiballast DB can be purchased in various kit configurations.
IR-00MBDB MultiBallast DB™ Kit (Solar Panel Kit)
Part Number: IR-00MBDB0092
UPC: Pending
Material: Aircraft Grade Aluminum
Finish: Mill
MultiBallast DB Zero Penetration Solar Panel Mounting System for all roof types. 0-degree flat mounting configuration. SikaFlex 1a polyurethane (not included) for direct adhesion. Load capacity exceeding 227 kg per solar panel. *One kit is required for each installed solar panel, plus an additional kit to start each row of panels.
Included Hardware:
(2) Aluminum Base Mounts
(2) H Module Mounting Brackets
(2) Anti-Slip Rubber Strips
(4) IR-F2 Solar Module Flange Clamps
IR-05MBDB MultiBallast DB™ Kit (Solar Panel Kit)
Part Number: IR-05MBDB0093
UPC: Pending
Material: Aircraft Grade Aluminum
Finish: Mill
Non-penetration MultiBallast DB solar panel mounting system for all roof types. This kit allows for elevated roof mounting at 0° or 5° south. SikaFlex 1a polyurethane (not included) is used for direct adhesion or ballasted with two 4x8x16 concrete blocks. Load-bearing capacity ranges from 30 to 260 kg per solar panel. *One kit is required for each installed solar panel, plus one IR-00MBDB0093 kit required to start each row of panels.
Included Hardware:
(2) Aluminum Base Mounts
(4) H-Module Brackets
(2) Short Anti-Slip Rubber Strips
(2) Long Anti-Slip Rubber Strips
(2) Bottom Brackets
(2) Riser Brackets
(4) IR-F2 Solar Panel Clamps
(4) M8x10mm Bolts
(2) M8x20mm Bolts
(2) 40x40mm Double-Sided Adhesive Tape
(4) 40x40mm Anti-Friction Rubber Pads

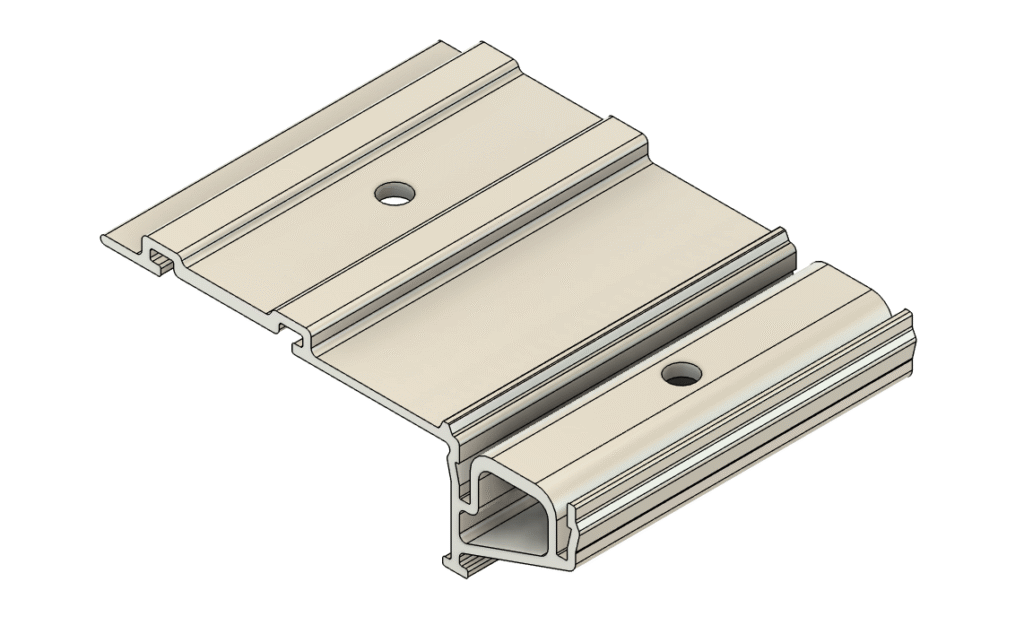

IR MultiBallast DB Series™ Lower Offset Bracket (10-Pack)
Part Number: IR-MBLB0089
UPC: Pending
Material: Aircraft Grade Aluminum
Finish: Mill
Offset bottom bracket.
Included Hardware:
(10) M8-1.25x10mm bolt
IR MultiBallast™ Wind Spoiler Kit (10-Pack)
Part Number: IR-MBSA0095
UPC: Pending
Material: Aircraft Grade Aluminum
Finish: Mill
Box of ten MultiBallast wind spoilers. This optional wind spoiler slides into the elevator and provides increased wind resistance by converting strong winds into downforce on the rear of the system.
Included Hardware:
(10) Wind Spoilers
*Multiple Patents Pending
